Description
Condition
Item is in “USED LIKE NEW CONDITION” will be fully functional but may have SLIGHT signs of use. The original outer packaging will have some cosmetic damage. Sold with 90 day return to base warranty. VAT invoice provided
Main Specification
| Product Description |

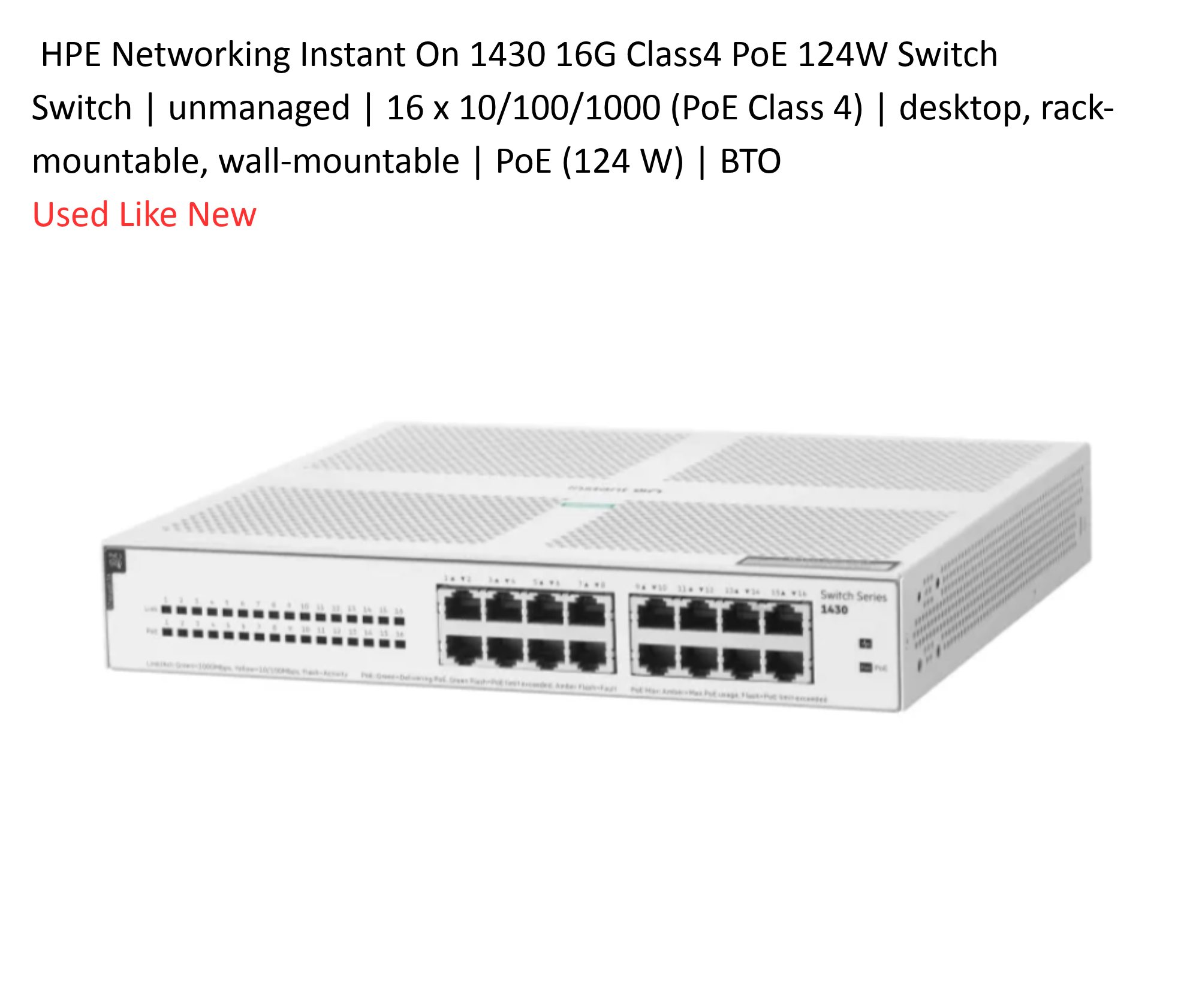

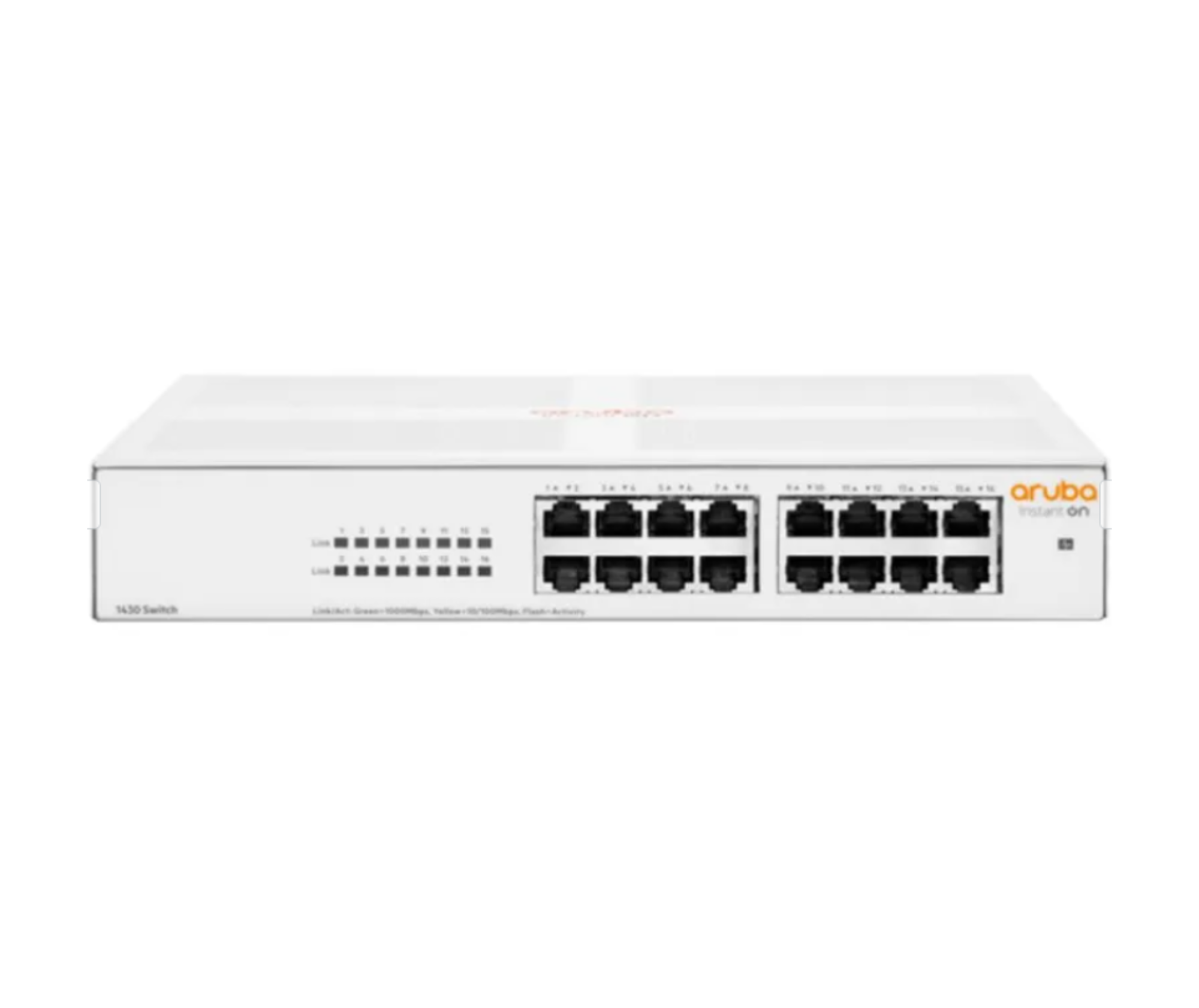

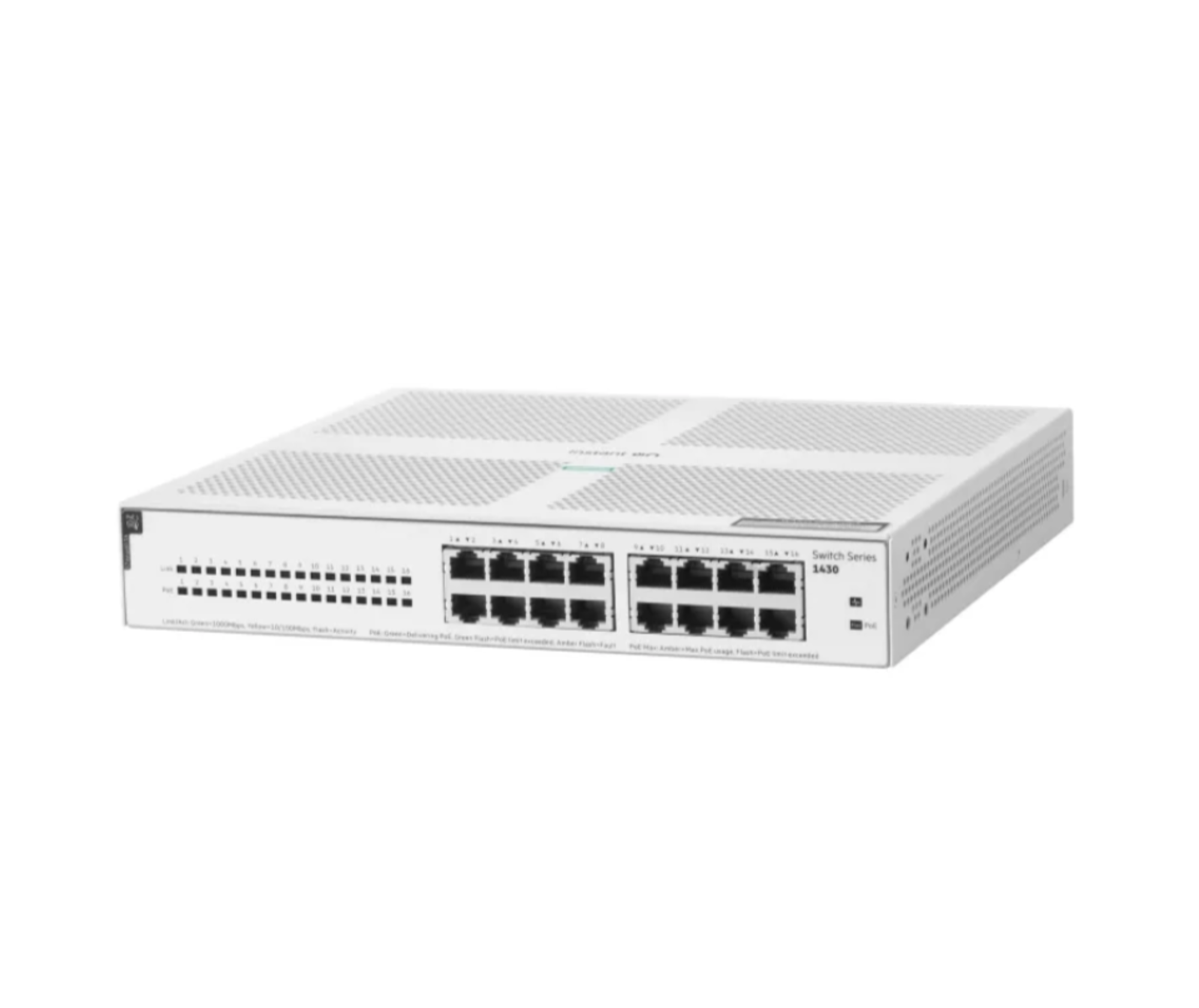

HPE Networking Instant On 1430 16G Class4 PoE 124W Switch – switch – 16 ports – unmanaged – rack-mountable |
| Device Type |
Switch – 16 ports – unmanaged |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
16 x 10/100/1000 (PoE Class 4) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
124 W |
| Performance |
Throughput: 23.8 Mpps Switching capacity: 32 Gbps Latency (100 Mbps): 2.7 µs Latency (1 Gbps): 1.8 µs |
| Capacity |
MAC address entries: 8192 |
| MAC Address Table Size |
8192 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
2MB packet buffer, fanless, wall mountable, DSCP support, VoIP support, MDI/MDI-X switch, flow control, auto-sensing per device, STP support, EEE |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i |
| Power |
AC 100-240 V (50/60 Hz) 1.7 A |
| Dimensions (WxDxH) |
27.5 cm x 26 cm x 4.4 cm |
| Weight |
2.09 kg |
| Localisation |
English / United Kingdom |
| Pricing Type |
BTO |
| Manufacturer Warranty |
Limited lifetime warranty |
General
| Device Type |
Switch – 16 ports – unmanaged |
| Enclosure Type |
Desktop, rack-mountable, wall-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
16 x 10/100/1000 (PoE Class 4) |
| Power Over Ethernet (PoE) |
PoE |
| PoE Budget |
124 W |
| Performance |
Throughput: 23.8 Mpps Switching capacity: 32 Gbps Latency (100 Mbps): 2.7 µs Latency (1 Gbps): 1.8 µs |
| Capacity |
MAC address entries: 8192 |
| MAC Address Table Size |
8192 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
2MB packet buffer, fanless, wall mountable, DSCP support, VoIP support, MDI/MDI-X switch, flow control, auto-sensing per device, STP support, EEE |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i |
| RAM |
128 KB EEPROM |
| Status Indicators |
Port status, link/activity, PoE max |
Expansion / Connectivity
| Interfaces |
16 x 10/100/1000 Base-T (PoE) RJ-45 |
Power

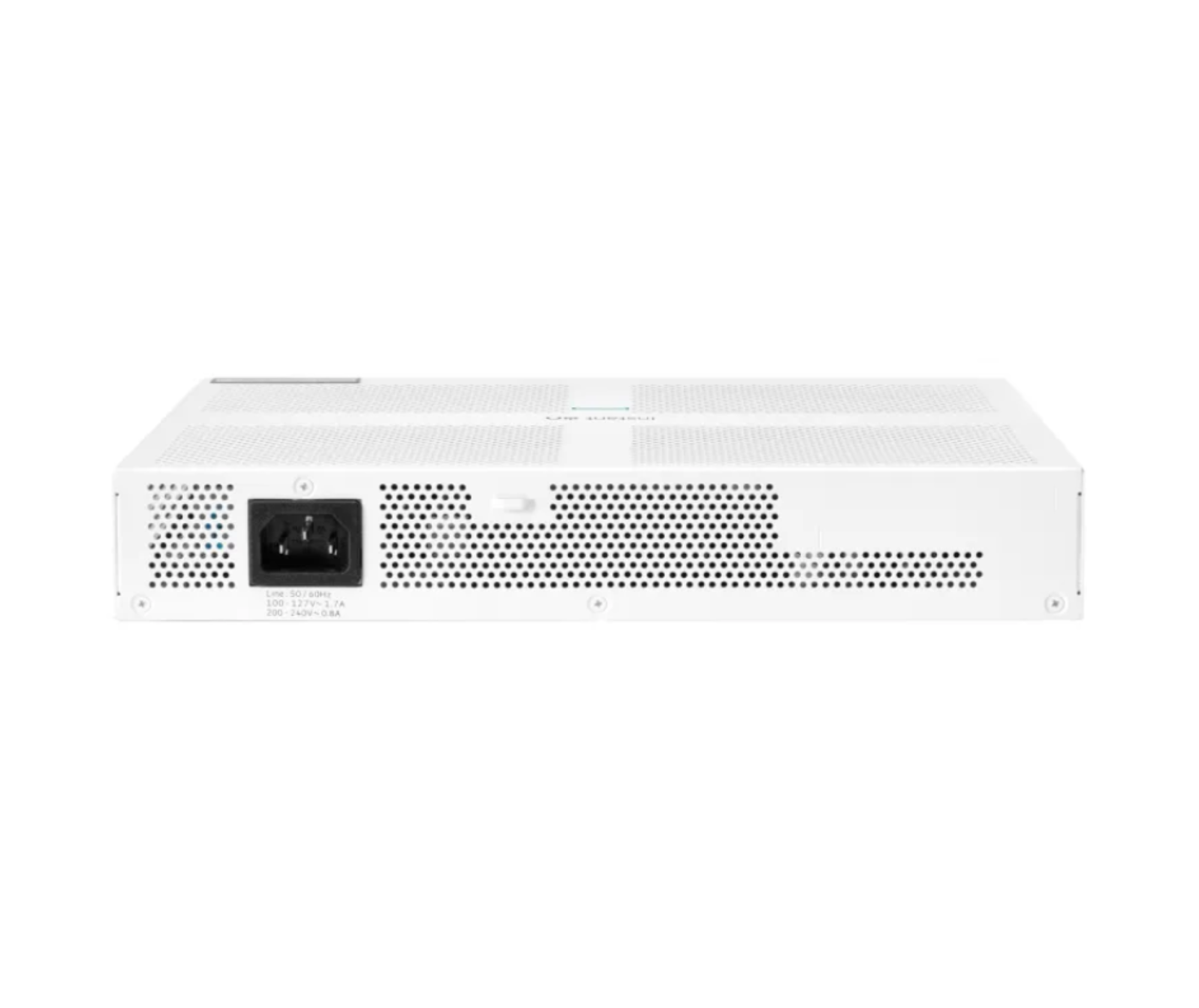

| Power Device |
Internal power supply |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Electric Current Required |
1.7 A |
| Power Consumption Stand by |
5 watt |
Miscellaneous
| Included Accessories |
Rack kit (2 post) |
| MTBF |
126.1 years |
| Compliant Standards |
IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class B, CISPR 32:2015 Class B, FCC CFR47 Part 15 B Class B, ICES-003 Class B, VCCI Class B, CNS 13438 Class B, KS C 9832 Class B, AS/NZS CISPR 32 Class B, EN 55035, CISPR 35, KS C 9835, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC/EN 61000-3-3 |
| Pricing Type |
BTO |
| Localisation |
English / United Kingdom |
Dimensions & Weight
| Width |
27.5 cm |
| Depth |
26 cm |
| Height |
4.4 cm |
| Weight |
2.09 kg |
Manufacturer Warranty
| Service & Support |
Limited warranty – lifetime Technical support – live chat – lifetime Technical support – phone consulting – 90 days from date of purchase |
Environmental Parameters
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 – 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 – 90% (non-condensing) |
