Description
Condition

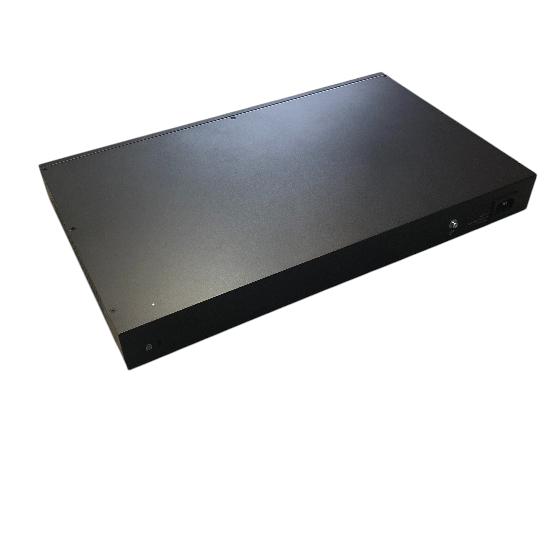

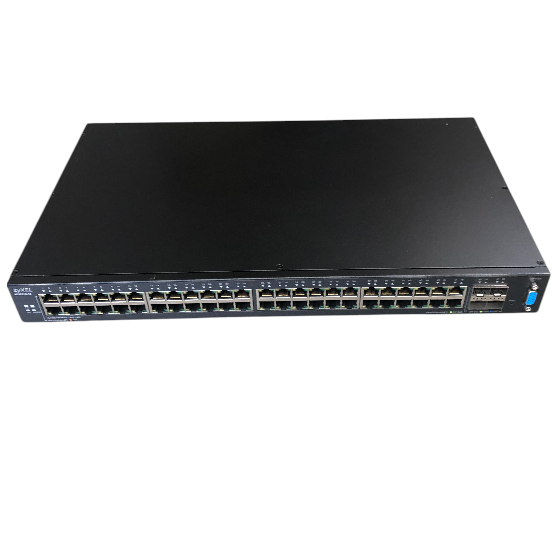

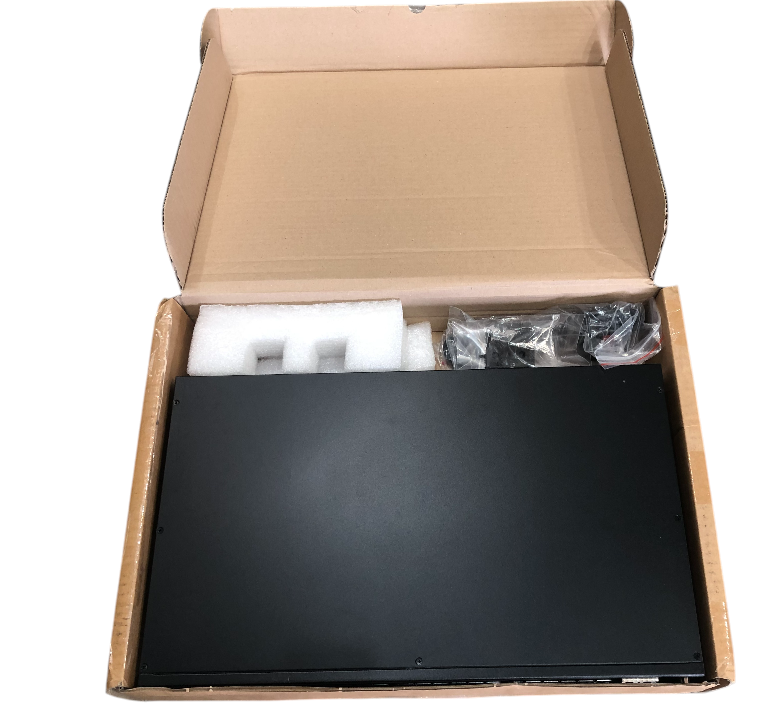

Switch is in very good condition, may have slight signs of use, rack kit & screws included. Non-original box & packaging. Comes with lifetime warranty from Zyxel.
Specification

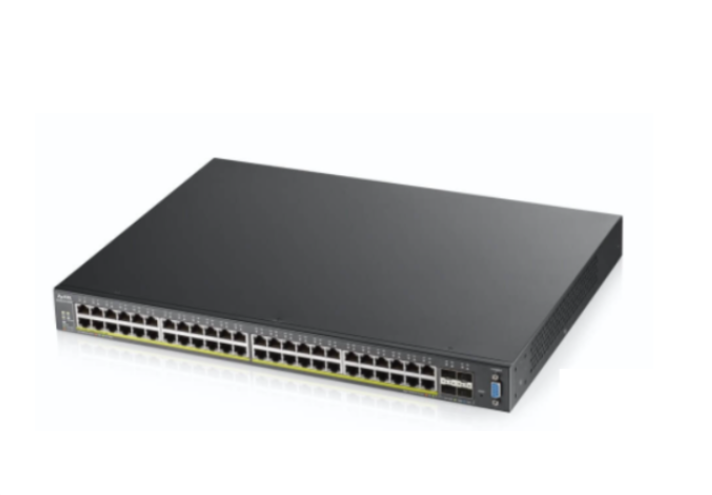

| Zyxel XGS2210-52 – switch – 52 ports – Managed – rack-mountable | |
|---|---|
| Device Type | Switch – 52 ports – Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.9 Mpps |
| Capacity | QoS hardware queues per port: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, URL filtering, IP address filtering, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, fanless, DHCP relay, Port Security, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), loop prevention, NTP time synchronisation, port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), IGMP proxy, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, ZyXEL One Network (ZON), IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), VLAN filtering |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.1 cm x 27 cm x 4.5 cm |
| Weight | 3.86 kg |
| Localisation | United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
Extended Specification
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | QoS hardware queues per port: 8 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Device Type | Switch – 52 ports – Managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, URL filtering, IP address filtering, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, IPv4 support, fanless, DHCP relay, Port Security, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), loop prevention, NTP time synchronisation, port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), IGMP proxy, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ErrDisable Recovery, ZyXEL One Network (ZON), IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, Internet Control Message Protocol (ICMP), VLAN filtering |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.9 Mpps |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLD |
| Status Indicators | Power, system, fan |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 27 cm |
| Height | 4.5 cm |
| Weight | 3.86 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x serial (RS-232) management |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC |
| Localisation | United Kingdom |
| MTBF | 970,594 hours |
| Power | |
|---|---|
| Power Consumption Operational | 45 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
