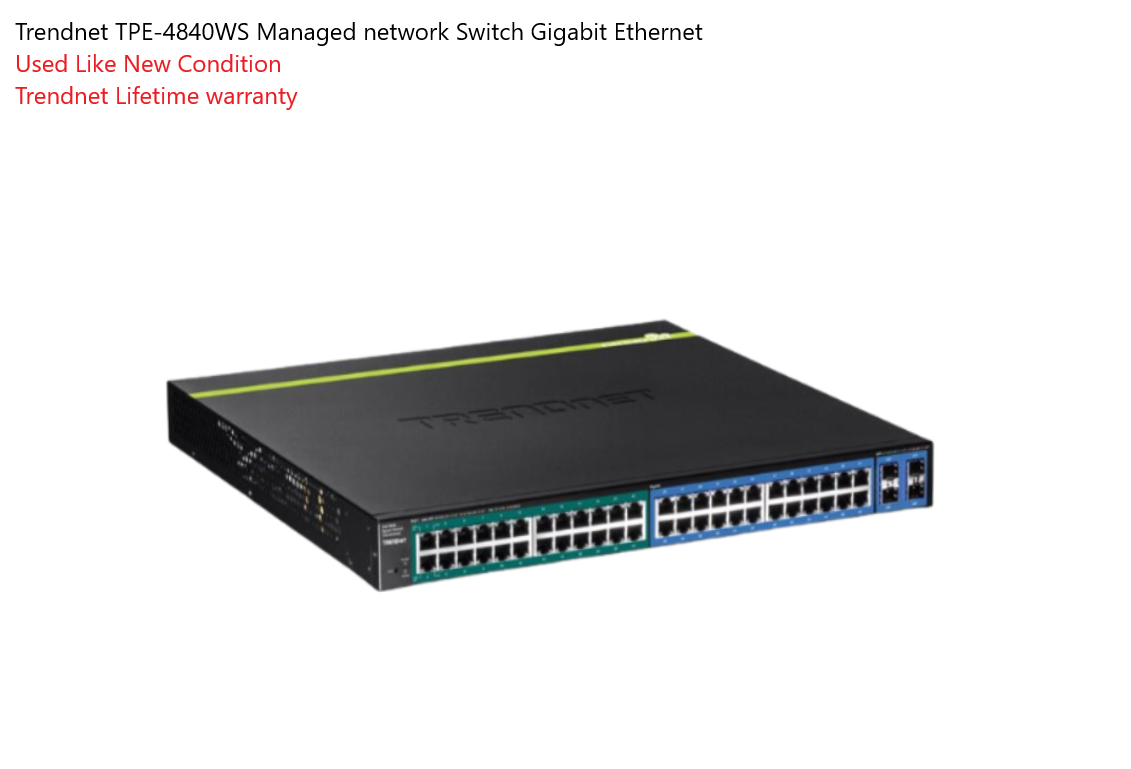

Name: Trendnet TPE-4840WS Managed network Switch Gigabit Ethernet
SKU: TPE-4840WS
Availability: InStock

Description

Condition
Item is in “USED LIKE NEW CONDITION” will be fully functional but may have SLIGHT signs of use. The original outer packaging will have some cosmetic damage. Sold with Trendnet Limited Lifetime warranty. VAT invoice provided.

Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1S IEEE 802.1X IEEE 802.1p IEEE 802.1w IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az

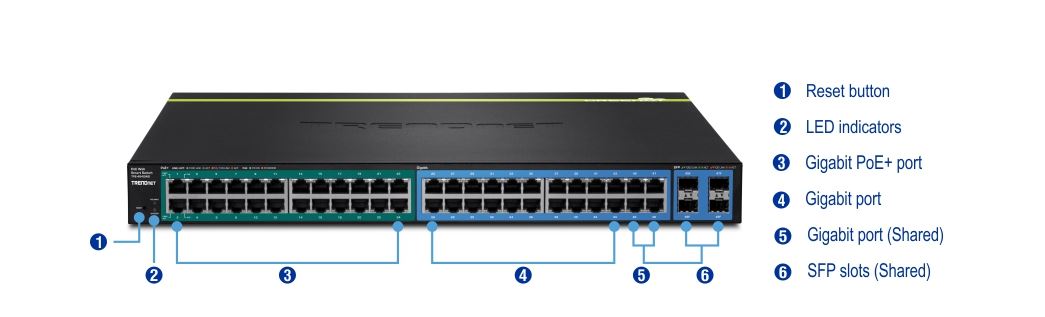

Device Interface	24 x Gigabit PoE+ ports (ports 1-24) 24 x Gigabit ports (ports 25-48) 4 x shared SFP slots (shared with ports 45 – 48) LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 96 Gbps RAM buffer: 1 MB MAC Address Table: 16K entries Jumbo Frames: 10 KB HOL Blocking Prevention Forwarding rates: 71.42 Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az power saving LLDP Virtual cable test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet–like MIB RFC 2863 Interface Group MIB RFC 2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue scheduling: strict priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID range 1-4094 Private VLAN (protected ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or both One to one Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2008/2003 Server
Power over Ethernet	Total PoE power budget: 370 Watts PoE+ ports 1 – 24: up to 30 Watts per port PoE over current protection PoE short circuit protection
Power	Input: 100 – 240 V AC, 50/60 Hz, internal power supply Consumption: 55.6 Watts (max. with no connected PoE devices) Consumption: 425.6 Watts (max. with total 370W PoE budget )
MTBF	318,350 hours
Operating Temperature	-5 – 45 °C (23 – 113 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 430 x 44 mm (17.3 x 16.9 x 1.7 in.) Rack mountable 1U height
Weight	6.5 kg (14.3 lbs.)
Certifications	CE FCC UL 60950
Warranty	Limited Lifetime Warranty
