Description
Condition

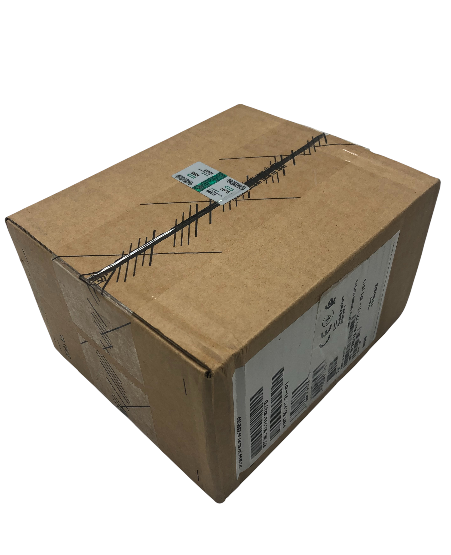

Item is in “NEW AND UNUSED CONDITION” the original outer packaging will have some cosmetic damage Box is sealed Sold with full manufacturer’s warranty. VAT invoice provided.
Brand: HPE
MPN: P21131-B21
Option Part Number: P21131-B21
Spare Part Number: P22581-001
General

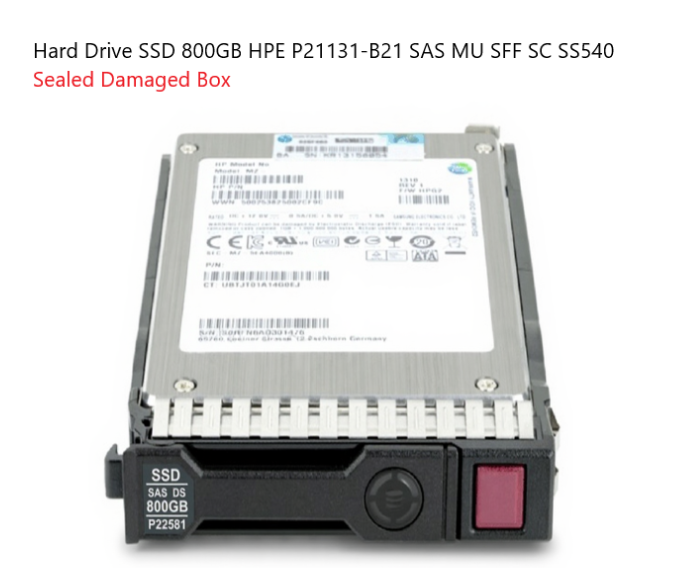

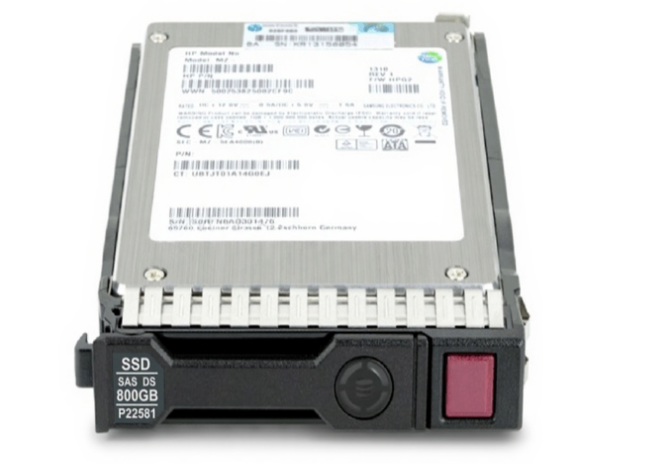

Device Type: Solid State Drive – Hot-Swap
Capacity: 800 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Bundled with: HPE Smart Carrier (SC)
Height: 15 mm (0.60 inch)
Weight: 23.98 oz
Performance
30 Days Writes: 4280
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 113000
Max Random Read IOPS (4KiB): 205000@Q256
Random Write IOPS (4KiB, Q=16): 120000
Max Random Write IOPS (4KiB): 124000@Q16
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5″ SFF
Power
Power Consumption: 6.4 Watts
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F
Product Dimensions & Weight
Height: 8.63 inch
Width: 9.00 inch
Depth: 5.75 inch
Weight: 1.508 lbs
Compatibility Information
Designed for
HPE ProLiant DL Series: DL160 Gen10 (2.5 inch), DL160 Gen10 Base (2.5 inch), DL160 Gen10 Entry (2.5 inch), DL180 Gen10 (2.5 inch), DL180 Gen10 Base (2.5 inch), DL180 Gen10 SMB (2.5 inch), DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Premium (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen10 Special Server (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)
