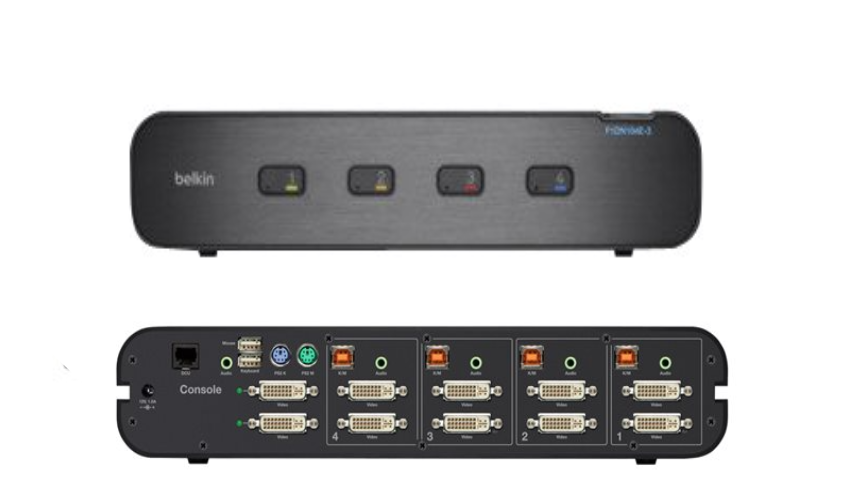

Belkin Secure Dual-Head DVI-I KVM Switch

£740.00 inc. VAT

In stock

SKU: F1DN104E-3EA Categories: , ,

Description

Condition

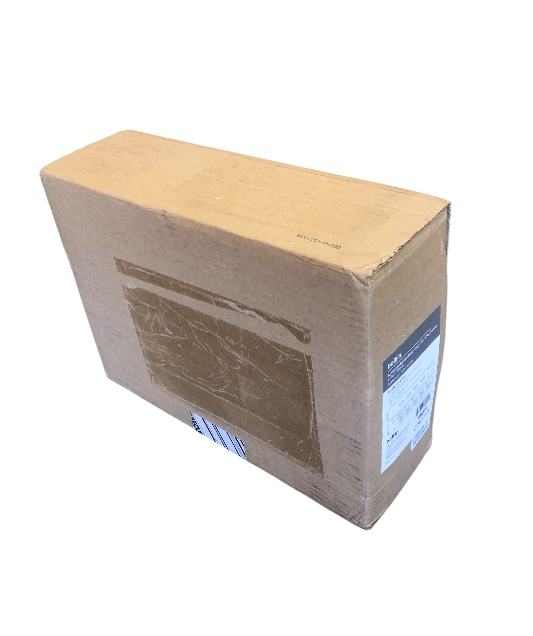

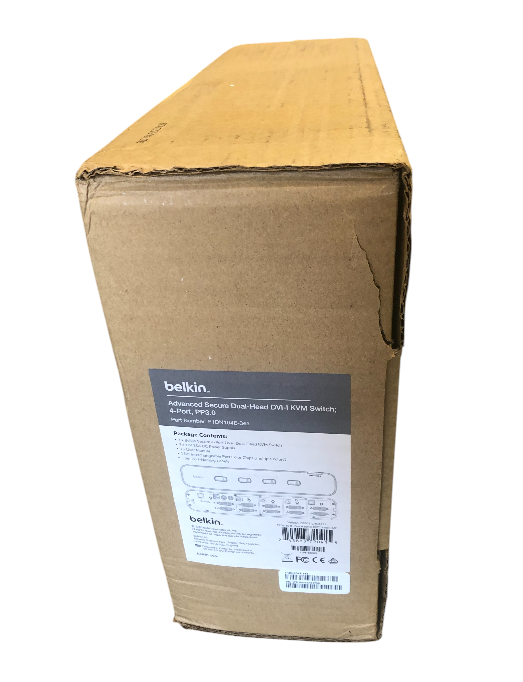

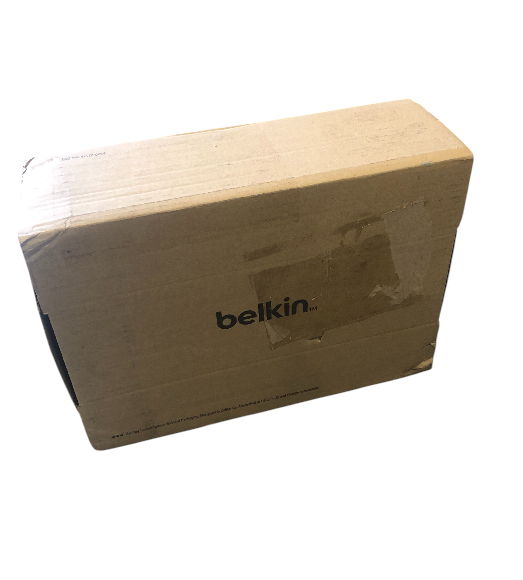

New & sealed. Packaging may have some cosmetic damage. Sold with full manufacturer’s warranty. Immediate shipment/Collection. VAT invoice provided.

Specification

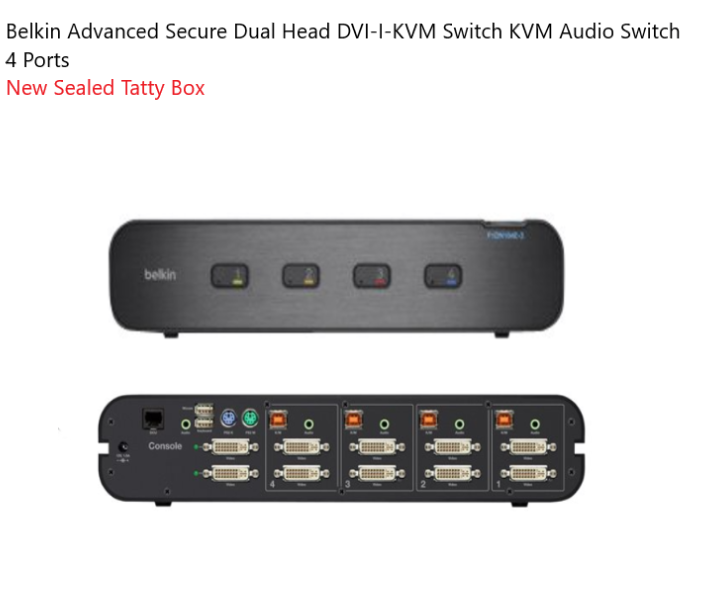

Belkin Advanced Secure Dual-Head DVI-I KVM Switch – KVM / audio switch – 4 ports
Device Type KVM / audio switch – 4 ports
Subtype KVM
Ports 4 x KVM / audio
KVM Users Qty 1 local user
Power AC 120/230 V
Dimensions (WxDxH) 31.25 cm x 15.38 cm x 6.13 cm
Weight 2.3 kg
System Requirements Red Hat Linux, Microsoft Windows Server 2003, Apple MacOS X 10.3 or later, Microsoft Windows 2000/XP/Vista/7
Manufacturer Warranty 3-year warranty
Designed For P/N: F1DN102F-3EA, F1DN104W-3EA



Extended Specification

General
Device Type KVM / audio switch – 4 ports
Enclosure Type Desktop
Features Dual-head
KVM Local Users Qty 1 local user
Keyboard / Mouse Interface PS/2, USB
Max Resolution 3840 x 2160 @ 30 Hz
Ports 4 x KVM / audio
Status Indicators Port status
Subtype KVM
Compatibility Information
Designed For P/N: F1DN102F-3EA, F1DN104W-3EA
Dimensions & Weight
Depth 15.38 cm
Height 6.13 cm
Weight 2.3 kg
Width 31.25 cm
Environmental Parameters
Humidity Range Operating 0 – 80% (non-condensing)
Max Operating Temperature 40 °C
Max Storage Temperature 60 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Expansion / Connectivity

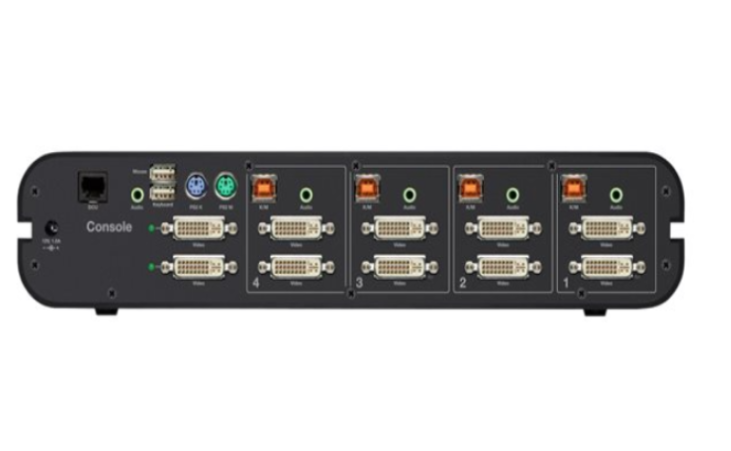

Interfaces 8 x DVI-I (dual link) input ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x audio input mini-jack ¦ 1 x keyboard (PS/2) ¦ 1 x mouse (PS/2) ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x audio output mini-jack ¦ 2 x DVI-I (dual link) output
Manufacturer Warranty
Service & Support Limited warranty – 3 years
Miscellaneous
Compliant Standards FCC Class B certified, UL, RoHS, ICES, EAL 2+
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Software / System Requirements
OS Required Red Hat Linux, Microsoft Windows Server 2003, Apple MacOS X 10.3 or later, Microsoft Windows 2000/XP/Vista/7

Additional information

Weight 5 kg
