Description
Condition

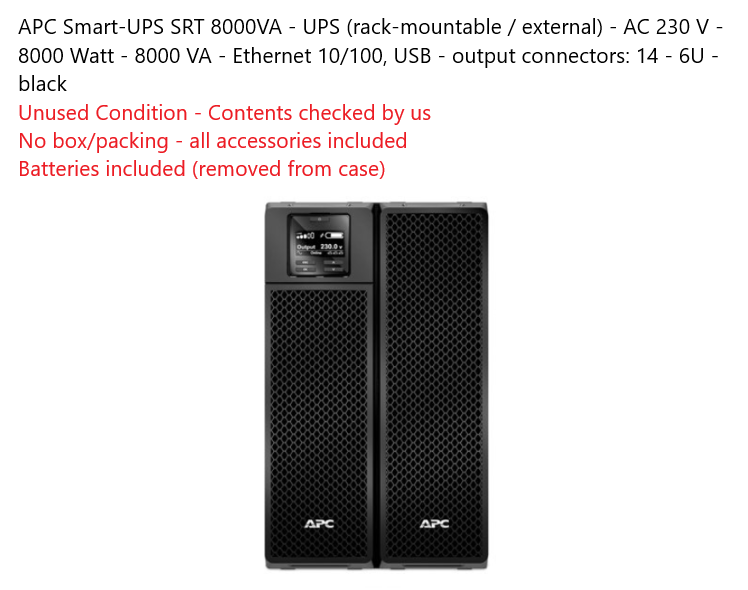

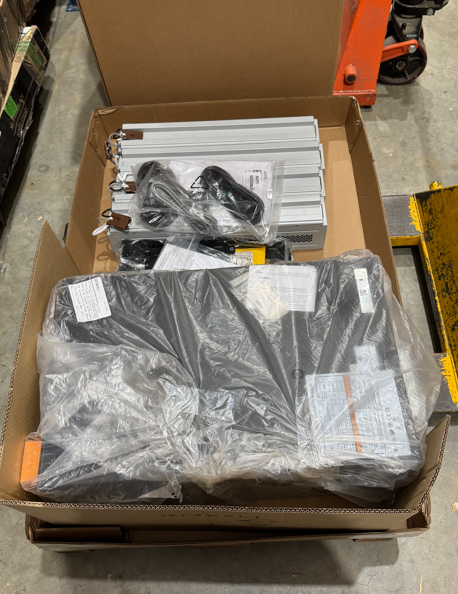

Item is in “UNUSED CONDITION” will be fully functional. Has been checked by us. NO BOX/PACKING, ALL ACCESSORIES INCLUDED, BATTERIES INCLUDED (REMOVED FROM CASE). Sold with full manufacturer’s warranty. VAT invoice provided.
Specifications
General

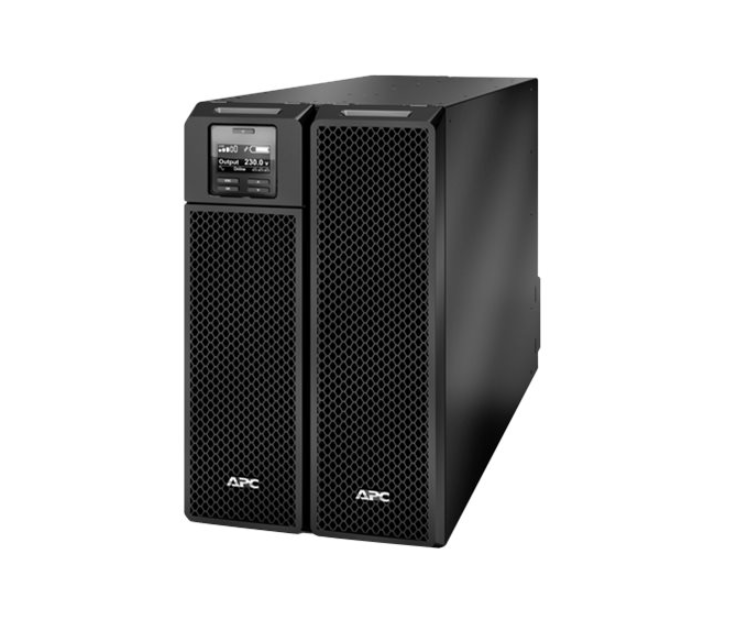

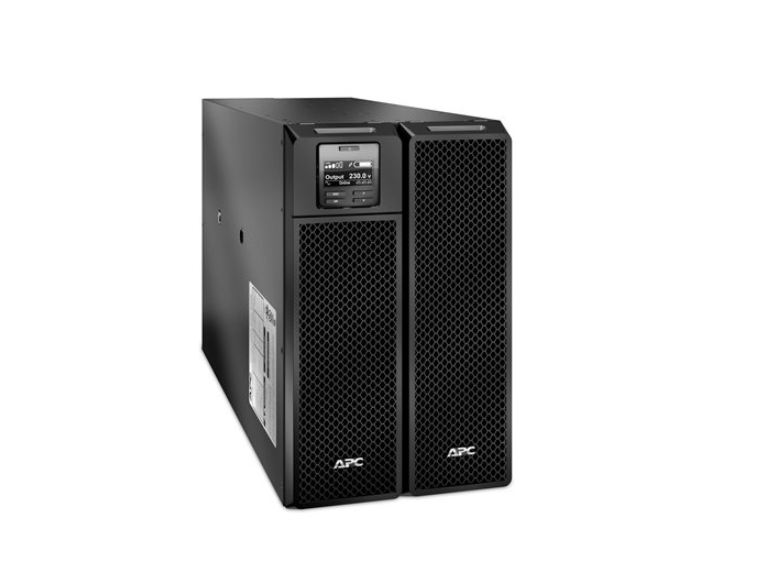

Device Type
UPS – rack-mountable / external
Height (Rack Units)
6U
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 230 V
Frequency Provided
50/60 Hz
Frequency Required
45 – 65 Hz
Input Connectors
Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details

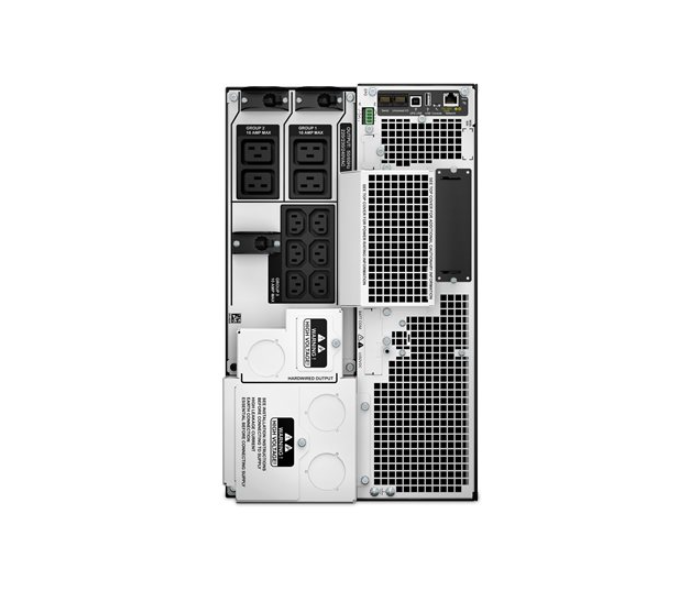

6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector
Output Voltage
AC 230 V ± 3% – 50/60 Hz
Power Capacity
8000 Watt / 8000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
480 Joules
Efficiency
98%
Battery
Technology
Lead Acid
Run Time (Up To)
5.3 min at full load ¦ 14.8 min at half load
Recharge Time
3 hours
Features
Maintenance free, sealed, leak-proof
Networking
Remote Management Interface
Ethernet 10/100, USB
Expansion / Connectivity
Interfaces
1 x management (Ethernet) – RJ-45 ¦ 1 x management (USB) – 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial – RJ-45
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Features
Audible alarm, LCD display
Compliant Standards
C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
Software / System Requirements
Software Included
APC PowerChute Business Edition
Manufacturer Warranty
Service & Support
Limited warranty – 3 years ¦ Limited warranty – batteries – 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 – 95% (non-condensing)
Sound Emission
55 dBA
Dimensions & Weight
Width
26.3 cm
Depth
71.5 cm
Height
43.2 cm
Weight
111.82 kg
Dimensions & Weight (Shipping)
Shipping Width
60 cm
Shipping Depth
100 cm
Shipping Height
46.1 cm
Shipping Weight
126.82 kg
