Description
Condition
Item is in “Ex-DEMONSTRATION CONDITION” will be fully functional and only ever used by us to test it prior to shipping. May have VERY SLIGHT signs of use. The original outer packaging will have some cosmetic damage. Sold with full manufacturer’s warranty. VAT invoice provided.
| Warranty Information | Warranty | 3 Years |
|---|---|---|

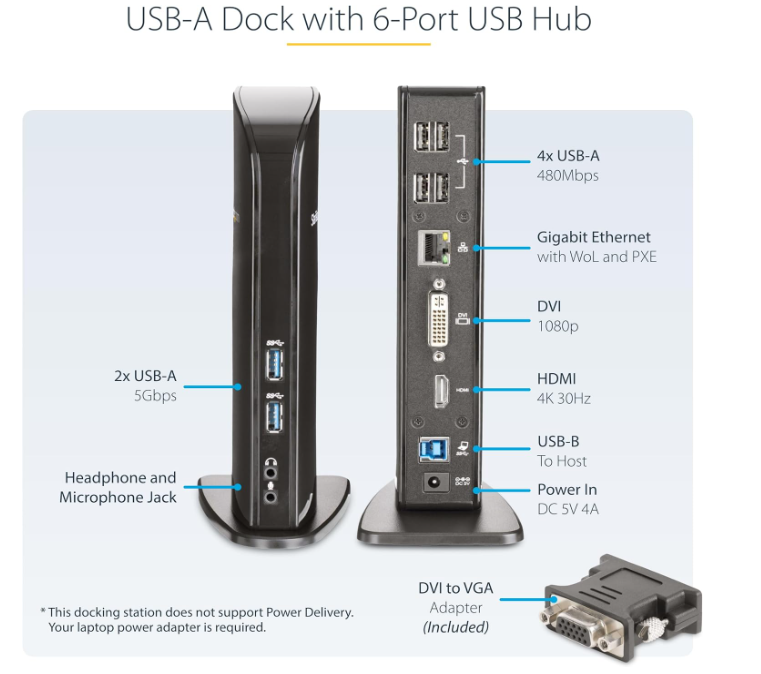

| Connector(s) | 1 – Connector Type(s) | DVI-I (29 pin) |
| USB Type-B (9 pin) USB 3.0 | ||
| RJ-45 | ||
| HDMI (19 pin) | ||
| 4 – Connector Type(s) | USB Type-A (4 pin) USB 2.0 | |
| 2 – Connector Type(s) | USB Type-A (9 pin, 5 Gbps) | |
| 3.5 mm Mini-Jack (3 Position) | ||
| Environmental | Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) | |
| Hardware | 4K Support | No |
| Fast-Charge Port(s) | No | |
| Displays Supported | 2 | |
| Bus Type | USB 3.0 | |
| Industry Standards | IEEE 802.3, 802.3u, and 802.3ab | |
| Chipset ID | DisplayLink – DL-3900 VIA/VLI – VL810 Terminus – FE1.1 Realtek – RTL8211E |
|
| Indicators | 1 – LED Indicators | USB Hub Link (Blue) |
| Power (Blue) | ||
| Packaging Information | Package Height | 10,9 cm [4,3 in] |
| Package Length | 27,3 cm [10,7 in] | |
| Shipping (Package) Weight | 947,0 g [33,4 oz] | |
| Package Width | 19,0 cm [7,5 in] | |
| Package Quantity | 1 | |
| Performance | Maximum Digital Resolutions | 1920 x 1200 Lower resolutions are also supported. |
| Type and Rate | USB 3.0 – 5 Gbit/s | |
| USB 2.0 – 480 Mbit/s | ||
| Compatible Networks | 10/100/1000 Mbps | |
| Auto MDIX | Yes | |
| Full Duplex Support | Yes | |
| Physical Characteristics | Weight of Product | 370,0 g [13,1 oz] |
| Color | Black | |
| Material | Plastic | |
| Product Length | 12,5 cm [4,9 in] | |
| Product Width | 70,0 mm [2,8 in] | |
| Product Height | 19,5 cm [7,7 in] | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC | |
| Input Current | 0.8A | |
| Output Voltage | 5 DC | |
| Output Current | 4A | |
| Plug Type | C | |
| Power Consumption (In Watts) | 20 | |
| Software | OS Compatibility | Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10, 11 macOS 10.6 – 10.12, 10.14 – 10.15, 11.0, 12.0 Chrome OS™ v55+ |
| Special Notes / Requirements | System and Cable Requirements | CPU: i3 Dual core 2.8GHz or better RAM: 2GB or higher Available USB 3.0 port |
| Note | The DVI-I connector supports DVI-I signaling (digital and analog) | |

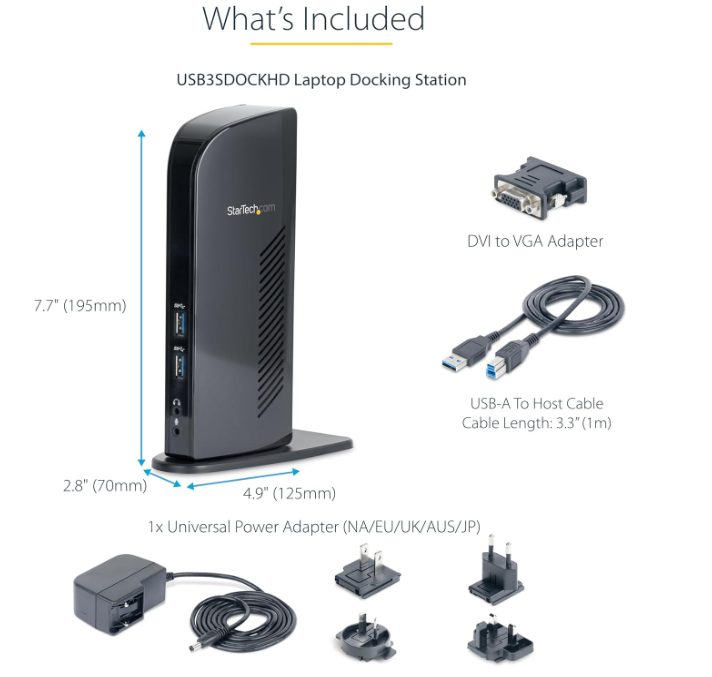

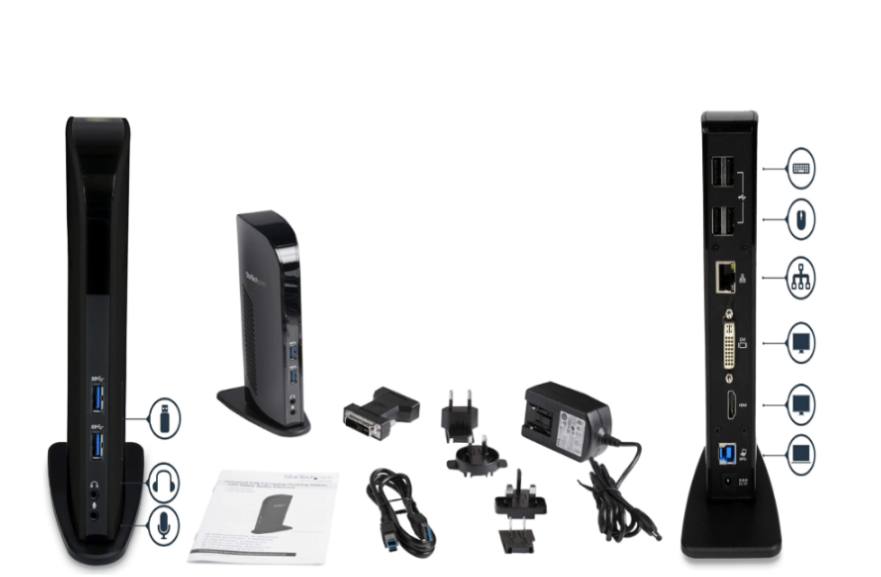

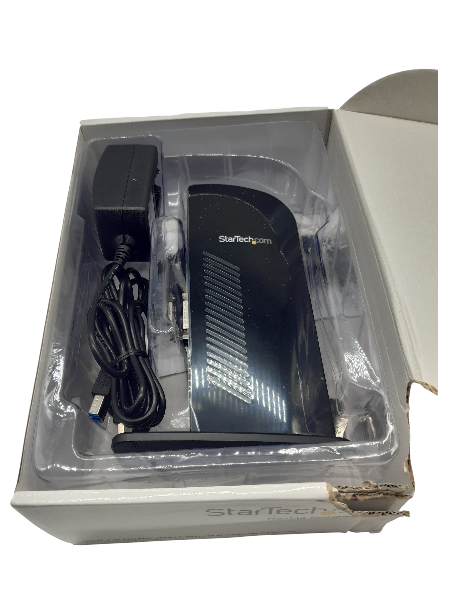

| What’s in the Box | 1 – Included in Package | USB 3.0 Docking Station |
| 3.3 ft [1 m] USB 3.0 Cable | ||
| DVI to VGA Adapter | ||
| Universal Power Adapter (NA/JP, EU, UK, ANZ) | ||
| Instruction Manual |
