Description
Condition
Item is in “USED LIKE NEW CONDITION” will be fully functional but may have SLIGHT signs of use. Supplied with non original AC adaptor The original outer packaging will have some cosmetic damage. Sold with full manufacturer’s warranty. VAT invoice provided.
| Product Description |

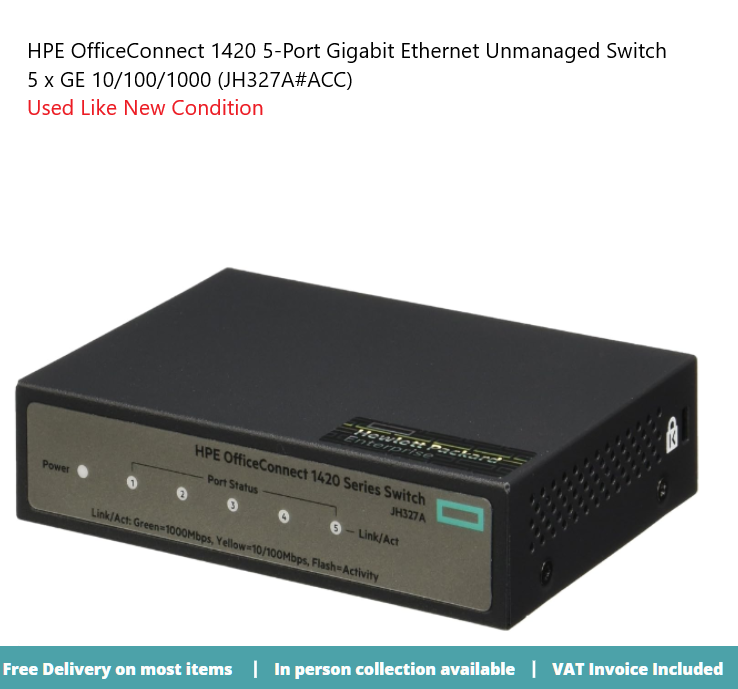

HPE OfficeConnect 1420 5g – switch – 5 ports – unmanaged |
| Device Type |
Switch – 5 ports – unmanaged |
| Subtype |
Gigabit Ethernet |
| Ports |
5 x 10/100/1000 |
| Performance |
Switching capacity: 10 Gbps Throughput: 7.4 Mpps Latency (100 Mbps): 3 µs Latency (1000Base-T): 2.6 µs |
| MAC Address Table Size |
2048 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, QoS, fanless, DSCP support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 801.1p, IEEE 802.3az |
| Power |
AC 120/230 V (50/60 Hz) 300 mA |
| Dimensions (WxDxH) |
11.48 cm x 8.08 cm x 2.69 cm |
| Weight |
300 g |
| Localisation |
English / Europe |
|
|
General
| Device Type |
Switch – 5 ports – unmanaged |
| Enclosure Type |
Desktop |
| Subtype |
Gigabit Ethernet |
| Ports |
5 x 10/100/1000 |
| Performance |
Switching capacity: 10 Gbps Throughput: 7.4 Mpps Latency (100 Mbps): 3 µs Latency (1000Base-T): 2.6 µs |
| MAC Address Table Size |
2048 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, QoS, fanless, DSCP support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 801.1p, IEEE 802.3az |
Expansion / Connectivity
| Interfaces |
5 x 1000Base-T RJ-45 |
Power
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Electric Current Required |
300 mA |
| Power Consumption Operational |
3 Watt |
Miscellaneous
| Compliant Standards |
Plug and Play, CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, UL 60950, CISPR 22, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-03 |
| Localisation |
English / Europe |
Dimensions & Weight
| Width |
11.48 cm |
| Depth |
8.08 cm |
| Height |
2.69 cm |
| Weight |
300 g |
Environmental Parameters
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 – 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 – 95% (non-condensing) |
