Description
Condition

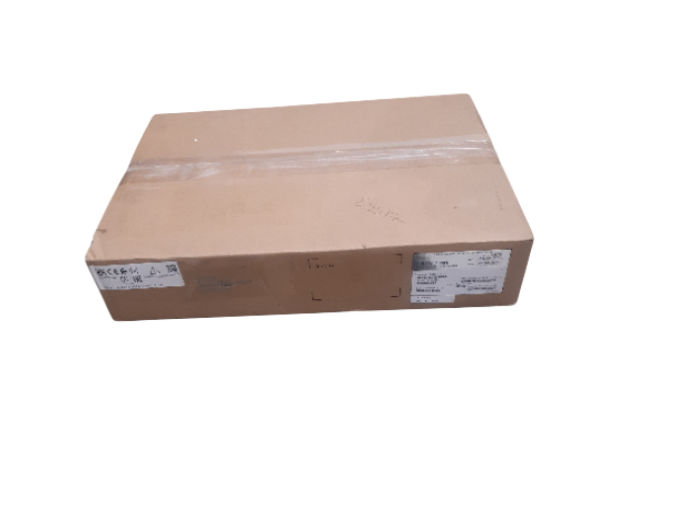

Item is in “Ex-DEMONSTRATION CONDITION” will be fully functional and only ever used by us to test it prior to shipping. May have VERY SLIGHT signs of use. The original outer packaging will have some cosmetic damage. Sold with full manufacturer’s warranty. VAT invoice provided.

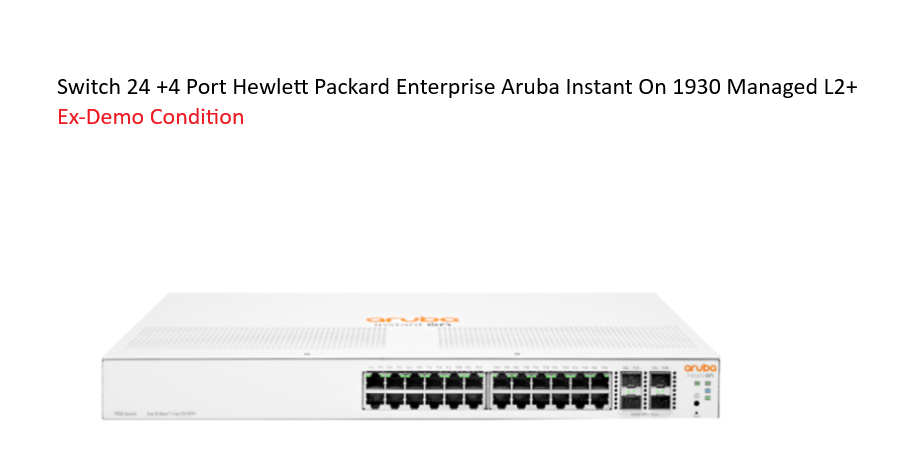

Aruba Instant On 1930 24G 4SFP+ Switch (JL682A) Technical Specification
I/O ports and slots
- 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 4 SFP 1/10GbE ports
Physical Characteristics
- Dimensions: 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm) (1U height)
- Weight: 5.32 lb (2.41 kg)
Memory and processor
- ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Performance
- 100 Mb Latency: < 4.7 uSec, packet size: 64B
- 1000 Mb Latency: < 2.4 uSec, packet size: 64B
- 10000 Mb Latency: < 1.3 uSec, packet size: 64B
- Throughput (Mpps): 95.23 Mpps, packet size: 64B
- Switching capacity: 128 Gbps
- Routing Table size (# of static entries): 32 static entries
- MAC Address table size (# of entries): 16,000 entries
- Reliability MTBF (years): 158
Environment
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Operating relative humidity: 15% to 95% @ 104°F (40°C)
- Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C)
- Nonoperating/Storage relative humidity: 15% to 95% @ 140°F (60°C)
- Altitude: up to 10,000 ft (3 km)
- Acoustic: Power: 0 dB no fan
Electrical Characteristics
- Frequency: 50/60 Hz
- AC voltage: 100 – 127/200 – 240 VAC
- Current: 0.5/0.3 A
- Maximum power rating: 22.6 W
- Idle power: 9.3 W
- Power supply: Internal power supply
Safety
- UL 60950-1
- IEC 60950-1
- EN 60950-1
- CAN/CSA-C22.2 No. 60950-1
- EN 60825-1 UL 62368-1 Ed. 2
- IEC 62368-1 Ed. 2
- EN 62368-1:2014
Emissions
- VCCI-CISPR 32, Class A
- CNS 13438
- ICES-003 Issue 6 Class A
- FCC CFR 47 Part 15, Class A
- EN 55032: 2015 +AC:2016/CISPR-32, Class A
